Project: SEE/TCH Technologies Combined for Active Manufacturing Facility Remediation
Location
Florida
Contaminants
CVOCs
Volume
104,000
Goal
Eliminate NAPL in the source zone
Number of Heaters
413 TCH and 40 SEE Wells
Mass Removed
4,800 lbs.
Important Project Details

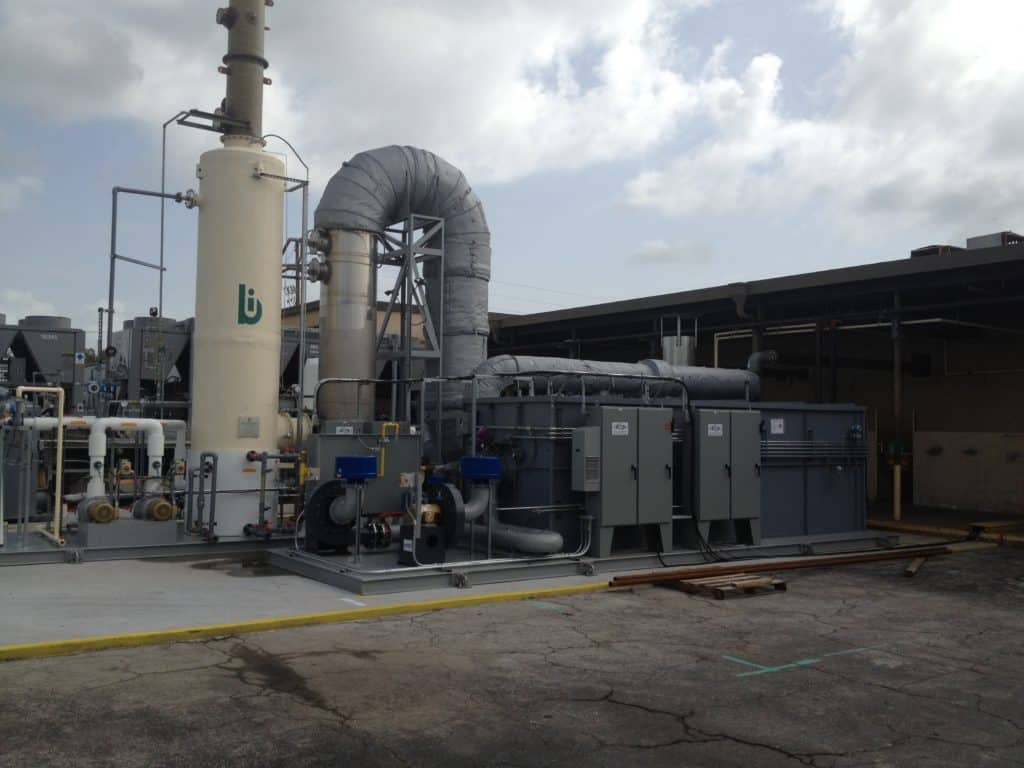

Approach: The TTZ was located within and outside a building. 413 TCH wells and 40 SEE injection wells were installed. A Fourier Transform InfraRed (FTIR) field analytical package was used for continuous system and air discharge monitoring.
Challenges: Approximately 90% of the TTZ was located beneath a building. Although the building was vacant, partition walls, drop ceilings, and existing utilities existed within the limits of the TTZ. An Ambersorb treatment system was operated to remove 1,4-dioxane, mobilized by the thermal system.
Results: The total mass removed was approximately 4,000 lbs in the vapor phase and another 800 lbs in the liquid phase and as NAPL. Biotic and abiotic processes were also found to have removed substantial amounts of mass due to the idling
of the heaters and gentle low-temperature heating for several months prior to full operation.
What Makes this Project Unique
The combined TCH and SEE system was implemented to treat contaminated soils and groundwater at a site where 90% of the target treatment zone (TTZ) was located beneath a building. SEE was combined with TCH to address high permeability groundwater flow zones within a low permeability silt layer. The TTZ encompassed an area with a footprint of approximately 70,000 ft2 extending from ground surface down to a maximum depth of 55 ft bgs.
